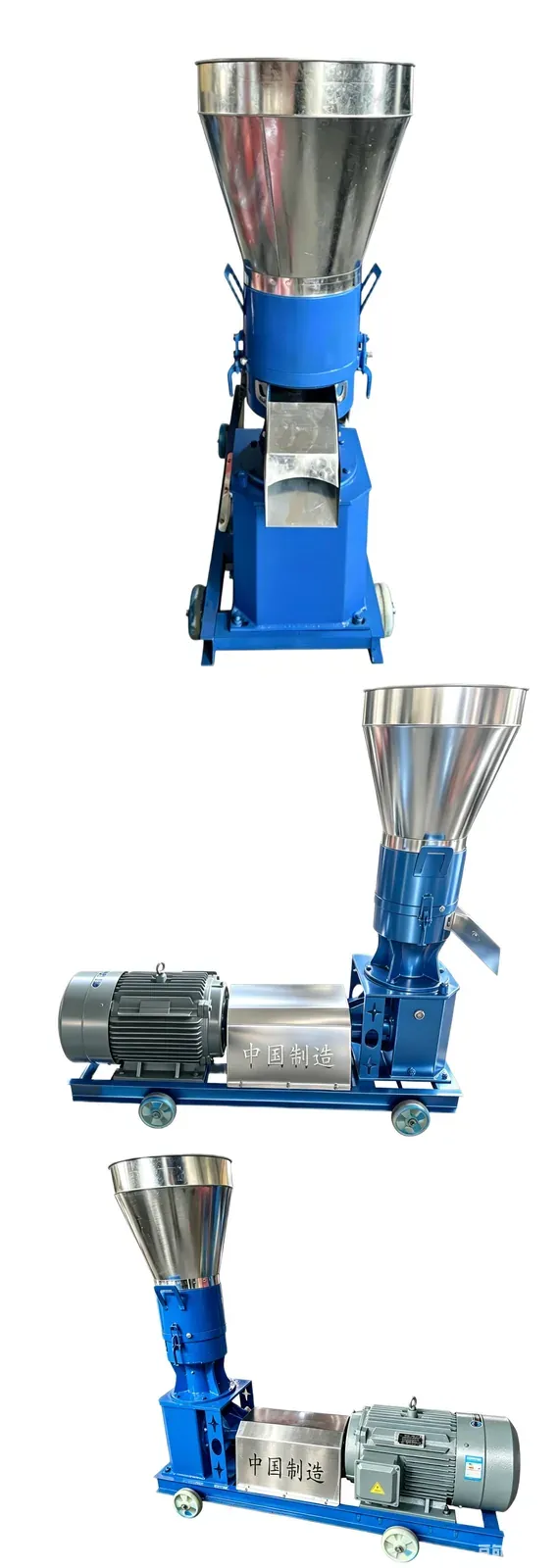

Feed Pellet Machine (Differential, Roller) — agricultural processing machine
Feed Processing Equipment

Feed Pellet Machine (Differential, Roller)

Feed Pellet Machine (Differential, Roller): used for pressing mixed feed into pellets for easier storage and feeding. Available in 5 configurations; see the specification table for per-model output, voltage, weight and power.

Specifications

Dimensions (L×W×H)
190: 100×30×74 | 210: 100×30×76 | 260: 100×30×77 | 300: 122×55×116 | 400: 145×55×143
Output (kg/h)
190: 60–80 | 210: 90–150 | 260: 160–190 | 300: 700–800 | 400: 1000–1200
Voltage (V)
190: 220/380 | 210: 220/380 | 260: 380 | 300: 380 | 400: 380
Weight (kg)
190: 75 | 210: 85 | 260: 95 | 300: 800 | 400: 800
Power (kW, 6-pole)
190: 4 | 210: 4 | 260: 4 | 300: 22 | 400: 30
Water Addition (kg)
190: 0–2 | 210: 0–2 | 260: 0–2 | 300: 0–3 | 400: 4–6
Key Features
Enlarged Feeding Hopper for Convenient Feeding ; Cr-Mn Steel Press Roller with High-Temperature Quenching Treatment ; Enlarged Discharge Outlet for Higher Speed ; Double Universal Joint Transmission

Where This Machine Fits

Feed Pellet Machine (Differential, Roller) is built for pressing mixed feed into pellets for easier storage and feeding. It suits farms, livestock operations and small processing businesses that want to handle this step on site rather than sending material out.

Construction and Specifications

Key parameters confirmed from the supplier specification sheet: Dimensions (L×W×H) 190: 100×30×74 | 210: 100×30×76 | 260: 100×30×77 | 300: 122×55×116 | 400: 145×55×143; Output (kg/h) 190: 60–80 | 210: 90–150 | 260: 160–190 | 300: 700–800 | 400: 1000–1200; Voltage (V) 190: 220/380 | 210: 220/380 | 260: 380 | 300: 380 | 400: 380; Weight (kg) 190: 75 | 210: 85 | 260: 95 | 300: 800 | 400: 800; Power (kW, 6-pole) 190: 4 | 210: 4 | 260: 4 | 300: 22 | 400: 30; Water Addition (kg) 190: 0–2 | 210: 0–2 | 260: 0–2 | 300: 0–3 | 400: 4–6.

Choosing the Right Configuration

Tell us your material, expected daily volume and your local power supply, and we will confirm a suitable configuration. Configuration details are confirmed per order through the contact page.
