Feed Processing Equipment
Feed Pellet Machine (Differential, Rotary Disc)
Feed Pellet Machine (Differential, Rotary Disc): used for pressing mixed feed into pellets for easier storage and feeding. Available in 8 configurations; see the specification table for per-model output, voltage, weight and power.
Specifications
- Dimensions (L×W×H)
- 125: 100×30×74 | 150: 100×30×76 | 160: 100×30×77 | 210: 101×46×102 | 230: 103×48×110 | 260: 103×48×110 | 300: 122×55×116 | 400: 145×55×143
- Output (kg/h)
- 125: 70 | 150: 90 | 160: 140 | 210: 150 | 230: 350 | 260: 500 | 300: 750 | 400: 1000
- Voltage (V)
- 125: 220/380 | 150: 220/380 | 160: 220/380 | 210: 380 | 230: 380 | 260: 380 | 300: 380 | 400: 380
- Weight (kg)
- 125: 75 | 150: 85 | 160: 95 | 210: 180 | 230: 200 | 260: 320 | 300: 800 | 400: 800
- Power (kW, 4-pole)
- 125: 4 | 150: 4 | 160: 4 | 210: 7.5 | 230: 7.5 | 260: 18.5 | 300: 22 | 400: 30
- Water Addition (kg)
- 125: 0–2 | 150: 0–2 | 160: 0–2 | 210: 0–2 | 230: 0–2 | 260: 0–3 | 300: 0–3 | 400: 4–6
Where This Machine Fits
Feed Pellet Machine (Differential, Rotary Disc) is built for pressing mixed feed into pellets for easier storage and feeding. It suits farms, livestock operations and small processing businesses that want to handle this step on site rather than sending material out.
Construction and Specifications
Key parameters confirmed from the supplier specification sheet: Dimensions (L×W×H) 125: 100×30×74 | 150: 100×30×76 | 160: 100×30×77 | 210: 101×46×102 | 230: 103×48×110 | 260: 103×48×110 | 300: 122×55×116 | 400: 145×55×143; Output (kg/h) 125: 70 | 150: 90 | 160: 140 | 210: 150 | 230: 350 | 260: 500 | 300: 750 | 400: 1000; Voltage (V) 125: 220/380 | 150: 220/380 | 160: 220/380 | 210: 380 | 230: 380 | 260: 380 | 300: 380 | 400: 380; Weight (kg) 125: 75 | 150: 85 | 160: 95 | 210: 180 | 230: 200 | 260: 320 | 300: 800 | 400: 800; Power (kW, 4-pole) 125: 4 | 150: 4 | 160: 4 | 210: 7.5 | 230: 7.5 | 260: 18.5 | 300: 22 | 400: 30; Water Addition (kg) 125: 0–2 | 150: 0–2 | 160: 0–2 | 210: 0–2 | 230: 0–2 | 260: 0–3 | 300: 0–3 | 400: 4–6.
Details and Options

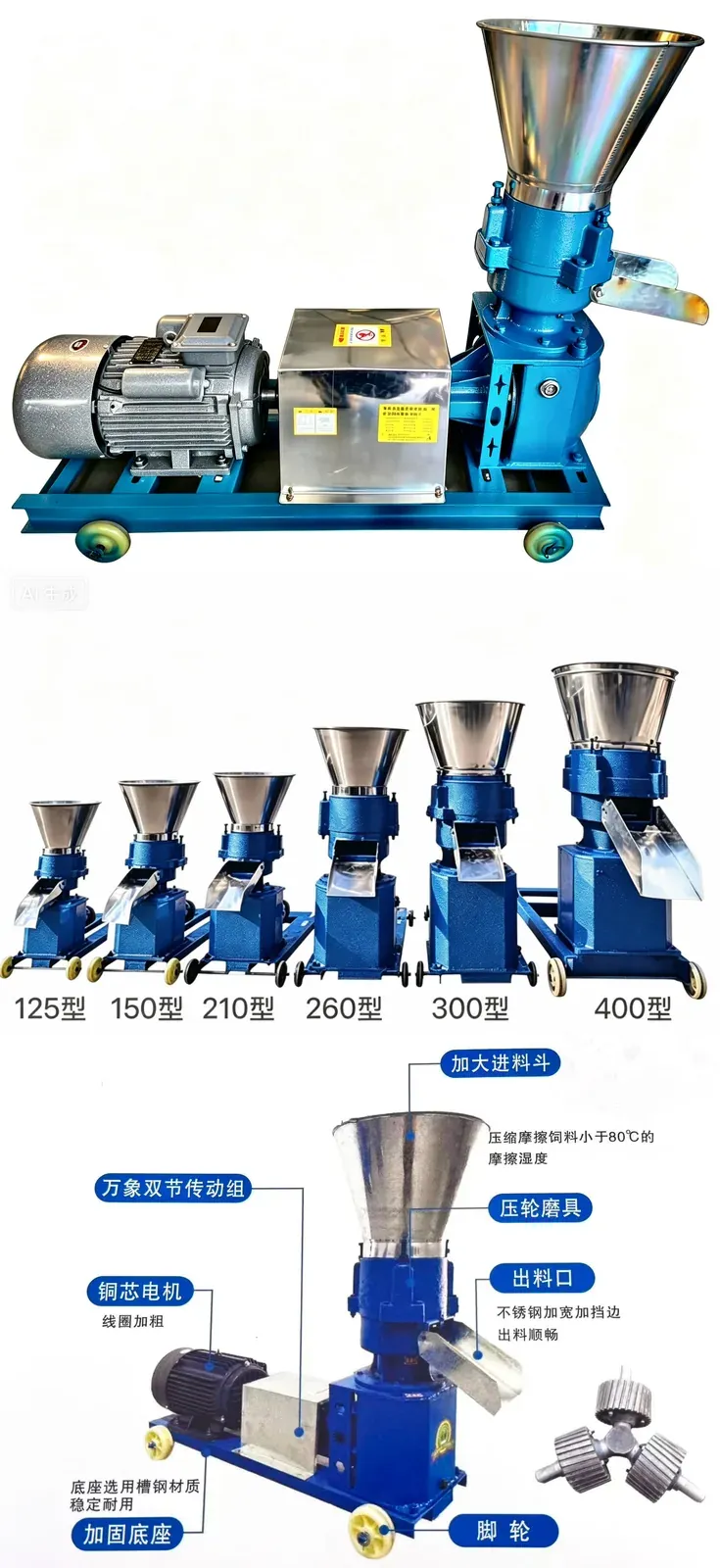

Key Features: Enlarged Feeding Hopper for Convenient Feeding ; Cr-Mn Steel Press Roller with High-Temperature Quenching Treatment ; Enlarged Discharge Outlet for Higher Speed ; Double Universal Joint Transmission ; Automobile Rear Axle Differential
Choosing the Right Configuration
Tell us your material, expected daily volume and your local power supply, and we will confirm a suitable configuration. Configuration details are confirmed per order through the contact page.
