Feed Processing Equipment

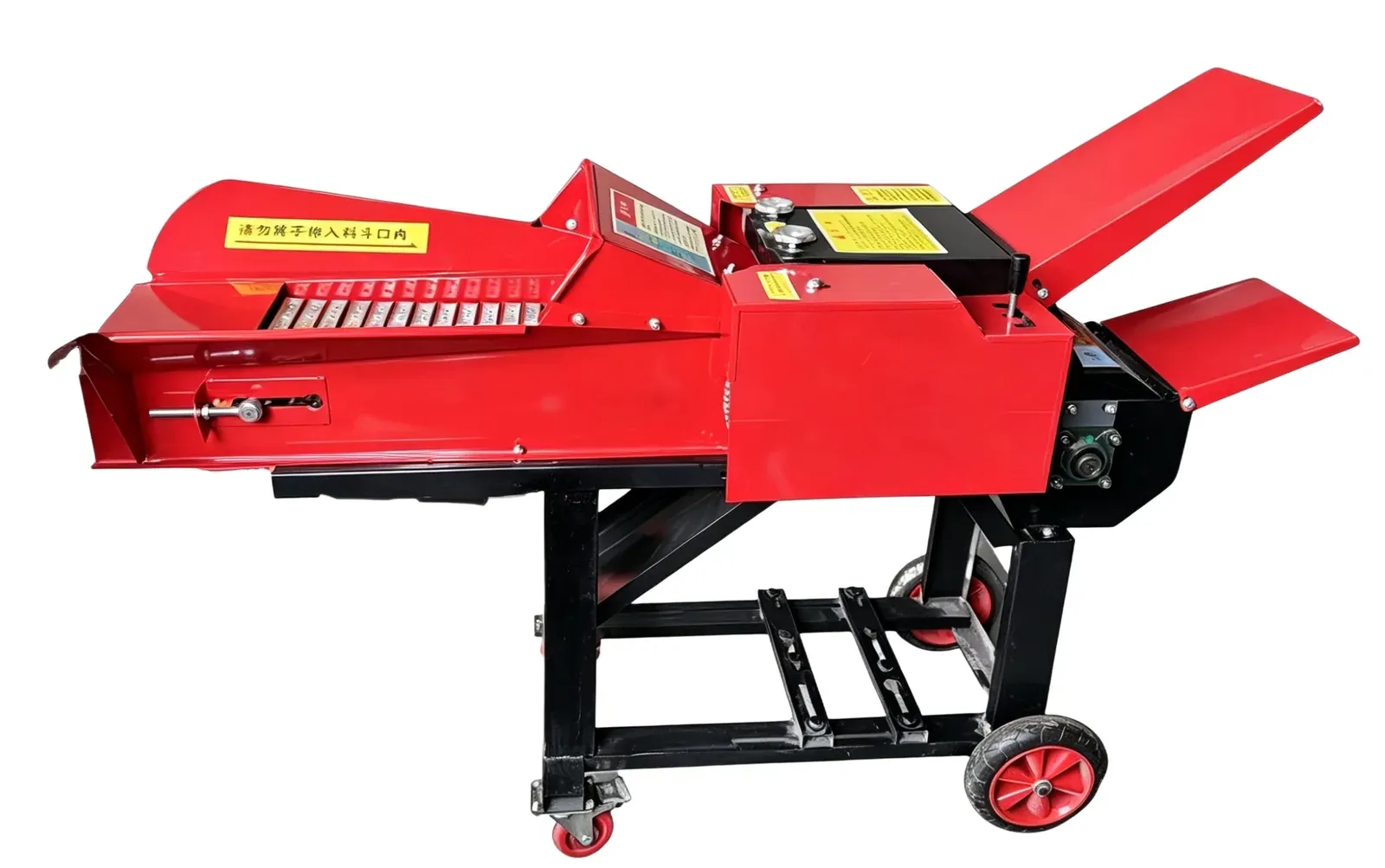

Forage Cutter (9ZR-3.5 Double Outlet)
Forage Cutter (9ZR-3.5 Double Outlet): used for cutting and rubbing straw and forage into soft, palatable feed. Machine Weight 90kg, Product Dimensions 1570×570×950, Motor Model 145-130, Rated Power 4.5kW.
Specifications
- Machine Weight
- 90kg
- Product Dimensions
- 1570×570×950
- Motor Model
- 145-130
- Rated Power
- 4.5kW
- Working Voltage
- 220V / 380V
- Rated Speed of Matched Power
- 1440 r/min
- Rated Spindle Speed
- 1500 r/min
- Number of Blades
- 6 knives
- Crushing Structure
- Wind Fire Wheel Disc + Rubbing Blade
- Rotor Width (Cutting / Rubbing)
- 470mm / 350mm
- Rotor Working Diameter (Cutting / Rubbing)
- Ø190mm / Ø200mm
- Conveyor Chain
- 22×70
- Transmission Mode
- Belt + Gear + Sprocket
- Feeding Method
- Chain Plate Automatic Feeding
- Structure Form
- Cutting & Rubbing Integrated
- Productivity
- ≥3500kg/h (Dry Straw)
Where This Machine Fits
Forage Cutter (9ZR-3.5 Double Outlet) is built for cutting and rubbing straw and forage into soft, palatable feed. It suits farms, livestock operations and small processing businesses that want to handle this step on site rather than sending material out.
Construction and Specifications
Key parameters confirmed from the supplier specification sheet: Machine Weight 90kg; Product Dimensions 1570×570×950; Motor Model 145-130; Rated Power 4.5kW; Working Voltage 220V / 380V; Rated Speed of Matched Power 1440 r/min.
Choosing the Right Configuration
Tell us your material, expected daily volume and your local power supply, and we will confirm a suitable configuration. Configuration details are confirmed per order through the contact page.
