Feed Processing Equipment

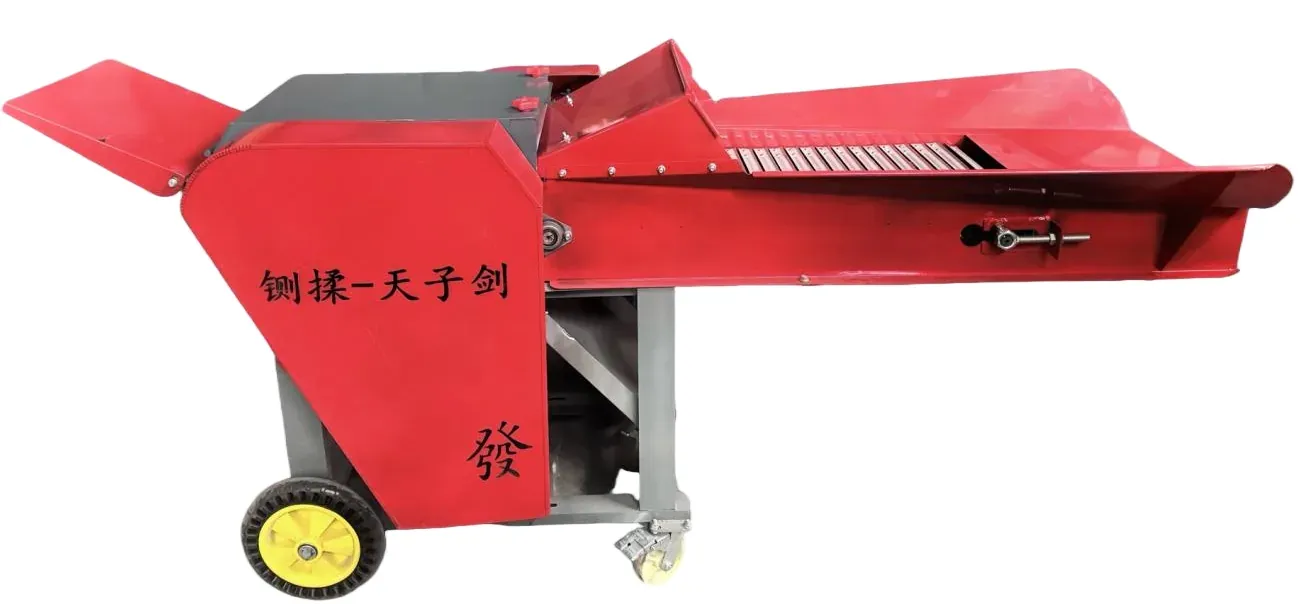

Forage Cutter (9ZR-6.5 Rubbing Machine)
Forage Cutter (9ZR-6.5 Rubbing Machine): used for cutting and rubbing straw and forage into soft, palatable feed. Machine Weight 160kg, Product Dimensions 2190×780×1130, Rated Power 7.5kW, Working Voltage 220V / 380V.
Specifications
- Machine Weight
- 160kg
- Product Dimensions
- 2190×780×1130
- Rated Power
- 7.5kW
- Working Voltage
- 220V / 380V
- Rated Speed of Matched Power
- 1440 r/min
- Rated Spindle Speed
- 2500 r/min
- Number of Blades
- 6 knives
- Crushing Structure
- Wind Fire Wheel Disc + Rubbing Blade
- Rotor Width (Cutting / Rubbing)
- 650mm / 520mm
- Rotor Working Diameter (Cutting / Rubbing)
- Ø190mm / Ø270mm
- Conveyor Chain
- 40×105
- Transmission Mode
- Belt + Gear + Sprocket
- Feeding Method
- Chain Plate Automatic Feeding
- Structure Form
- Cutting & Rubbing Integrated
- Productivity
- ≥6500kg/h (Dry Straw)
Where This Machine Fits
Forage Cutter (9ZR-6.5 Rubbing Machine) is built for cutting and rubbing straw and forage into soft, palatable feed. It suits farms, livestock operations and small processing businesses that want to handle this step on site rather than sending material out.
Construction and Specifications
Key parameters confirmed from the supplier specification sheet: Machine Weight 160kg; Product Dimensions 2190×780×1130; Rated Power 7.5kW; Working Voltage 220V / 380V; Rated Speed of Matched Power 1440 r/min; Rated Spindle Speed 2500 r/min.
Choosing the Right Configuration
Tell us your material, expected daily volume and your local power supply, and we will confirm a suitable configuration. Configuration details are confirmed per order through the contact page.
